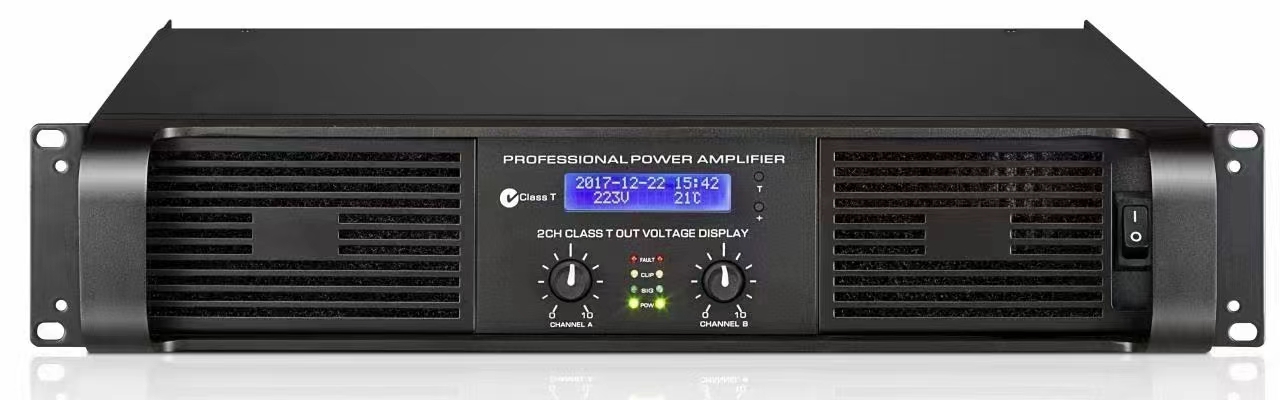

P5350 Professional post amplifier
Product models: P5350, P5450, P5550, P5650, P5850
Application fields: conference rooms, multi-function Lecture hall, stadiums, bars, slow rocking bars, KTV, theaters
- Details
|
MODEL |
P5350 |
P5450 | P5550 |
P5650 |
P5850 |
||||||
|
Rated power 1KHz, 0.5% THD+N |
Stereo 8 Ω |
2×350W |
2×450W |
2×550W |
2×650W |
2×550W |
|||||
|
Stereo 4 Ω |
2×500W |
2×800W |
2×900W |
2×1000W |
2×1500W |
||||||
|
Bridge Mono Mode 8Ω |
900W |
1500W |
1800W |
|
|
||||||
|
Frequency response (1W) |
20Hz-20kHz，+1/-1dB |
||||||||||
|
Total harmonic distortion（THD) |
≤0.1% |
||||||||||
|
Damping coefficient |
≥150:1 |
≥180:1 |
≥200:1 |
≥220:1 |
≥220:1 |
||||||
|
Slew rate |
25V/us |
25V/us |
30V/us |
35V/us |
35V/us |
||||||
|
voltage gain（0.775V） |
63 |
81 |
96 |
110 |
120 |
||||||
|
Signal to noise ratio (A-weighted) |
≥100dB |
||||||||||
|
Input sensitivity (rated power 8ohms) |
0.775V or 1.4V |
||||||||||
|
Input impedance (rated) |
20k ohms（balance）/10k ohms（nonequilibrium） |
||||||||||
|
Resolution |
≥65dB |
||||||||||
|
Input Common-mode rejection ratio |
60dB |
||||||||||
|
Input connector |
One balanced XLR per channel |
||||||||||
|
Output connector (speaker connection interface) |
4-POLE per channel Speakon |
||||||||||
|
Compression ratio |
20:1 |
||||||||||
|
power supply |
AC 220V 50-60Hz |
||||||||||
|
Chassis size（WxHxD） |
483mm×88mm×339mm |
483mm×88mm×405mm |
|||||||||
|
net weight |
18kg |
21kg |
23kg |
26kg |
35kg | ||||||
